Smart Alarm Clock
Smart Alarm Clock
Last revision • 25/06/2025

HARDWARE REQUIRED:

  • PICUNO Microcontroller board
  • 1 × 16x2 I2C LCD Display
  • 1 × DS1302 Real Time Clock Module
  • 1 × DHT11 Temperature and humidity sensor
  • 1 × Rotary Encoder Module
  • 1 × Buzzer
  • USB cable
  • 1 × 4xAA Battery Pack (for external supply)

DESCRIPTION:

This project creates a multi-function smart alarm clock. By default, it displays the live time and date from a Real-Time Clock (RTC) module. The user can press the rotary encoder's button to cycle through different modes: a "weather station" that displays live temperature and humidity from a DHT11 sensor, and an "alarm set" mode. In alarm set mode, the rotary encoder knob is used to adjust the hour and minute for the alarm. When the real time matches the alarm time, a buzzer sounds continuously and a "TIME'S UP" message is displayed until the user presses the button to dismiss it.

LIBRARIES REQUIRED:
For C / Arduino IDE:
dht.h: Manages dht11 sensor.
Wire.h: Manages I2C communication (usually included by default).
LiquidCrystal_I2C.h: The driver library for the I2C LCD module.

For Micropython / Thonny IDE:
dht11.py: The custom library file for the dht11 sensor, saved to the PICUNO board.
i2c_lcd.py: The custom library file saved to the PICUNO board.
The code also uses the built-in machine and time modules.

CIRCUIT DIAGRAM:

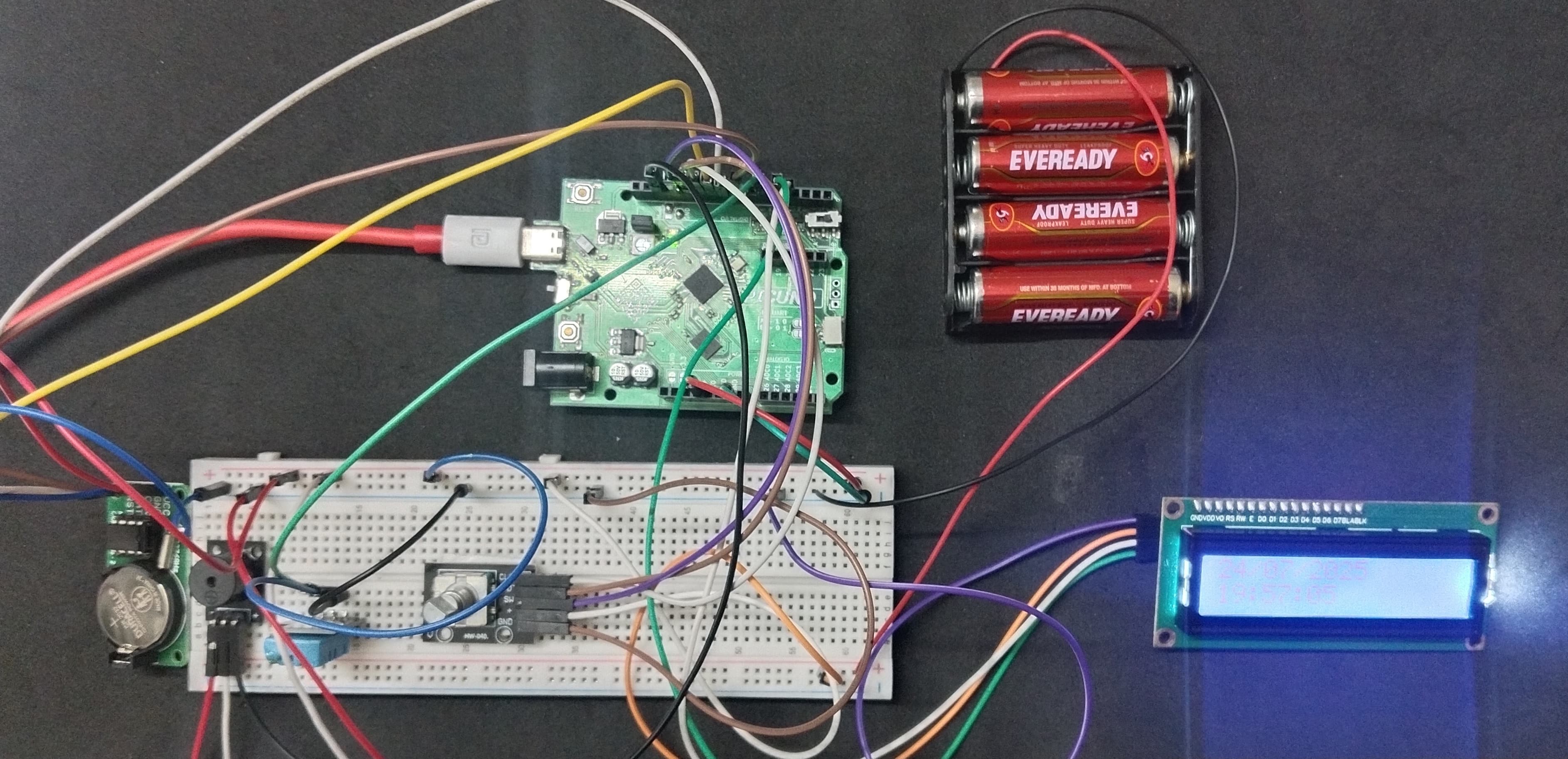

Smart Alarm Clock
  • 16x2 I2C LCD Display:
    • Connect the LCD Module's GND pin to GND.
    • Connect the LCD Module's VCC pin to the Positive (+) terminal of the 4xAA Battery Pack.
    • Connect the LCD Module's SDA pin GPIO 4 (SDA Pin on PICUNO).
    • Connect the LCD Module's SCL pin GPIO 5 (SCL Pin on PICUNO).
    • Connect the negative terminal (-) of the 4xAA Battery Pack to Common GND on breadboard.
  • DS1302 RTC Module:
    • Connect the VCC pin to 3.3V pin on the board.
    • Connect the GND pin to GND pin on board.
    • Connect the CLK pin to GPIO 8.
    • Connect the DAT pin to GPIO 9.
    • Connect the RST pin to GPIO 10.
  • Rotary Encoder Module:
    • Connect the VCC (+) pin to 3.3V pin on the board.
    • Connect the GND pin to GND pin on board.
    • Connect the CLK pin to GPIO 11.
    • Connect the DT pin to GPIO 12.
    • Connect the SW pin to GPIO 13.
  • DHT11 Temperature and Humidity Sensor:
    • Connect the VCC (+) pin to 3.3V pin on the board.
    • Connect the GND (-) pin to GND pin on board.
    • Connect the Signal (S) pin to GPIO 6.
  • Buzzer Module:
    • Connect the GND (-) pin to GND pin.
    • Connect the VCC (+) pin to 5V.
    • Connect the Signal (S) pin to GPIO 15.

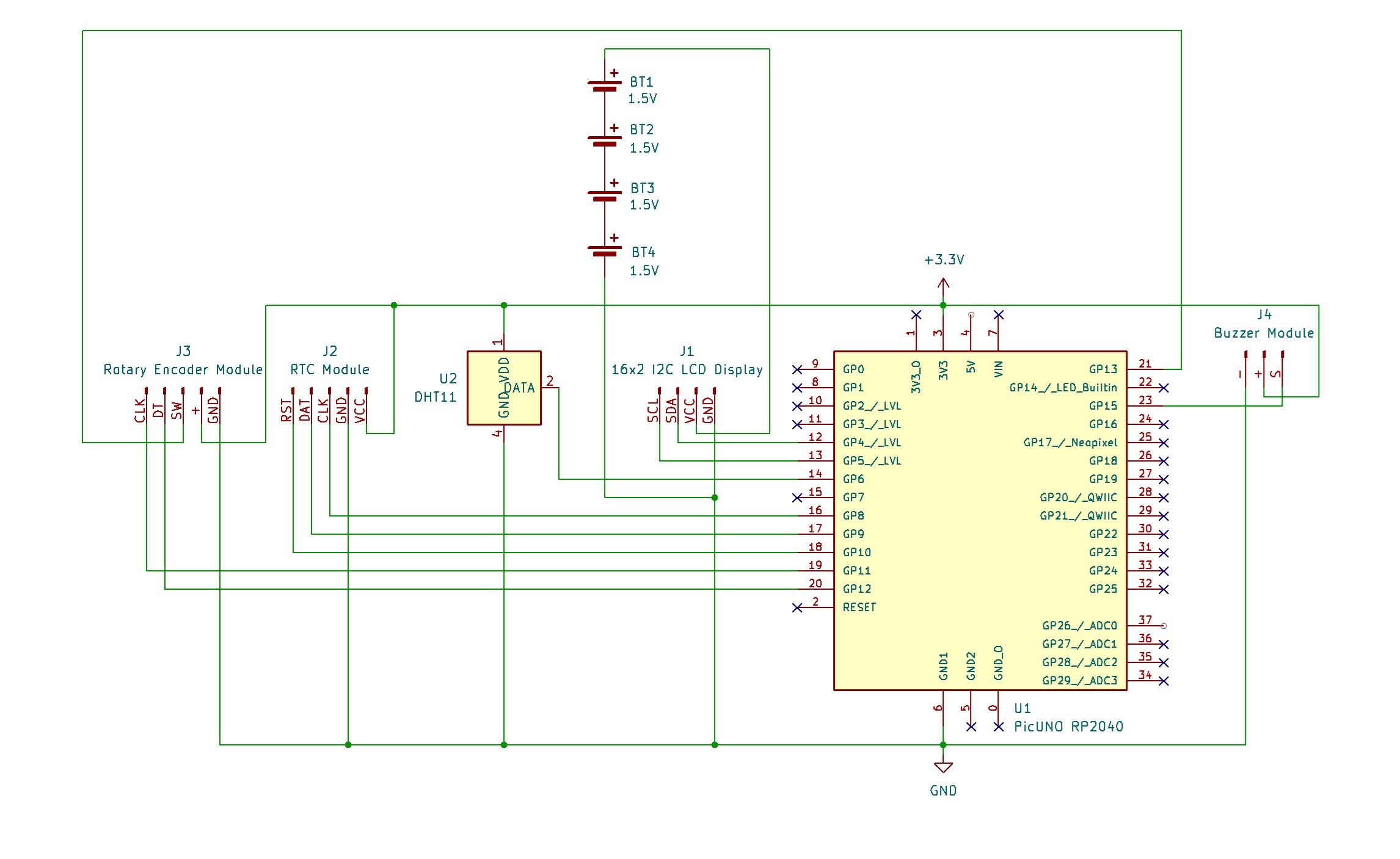

    SCHEMATIC:

    16x2 I2C LCD Display:

    LCD VCC → 5V

    LCD GND → GND

    LCD SDA → GPIO 4 (Board SDA Pin)

    LCD SCL → GPIO 5 (Board SCL Pin)

    DS1302 RTC Module:

    VCC → 3.3V

    GND → GND

    CLK → GPIO 8

    DAT → GPIO 9

    RST → GPIO 10

    Rotary Encoder Module:

    VCC → 3.3V

    GND → GND

    CLK → GPIO 11

    DT → GPIO 12

    RST → GPIO 13

    DHT11 Temperature and Humidity Sensor:

    VCC / + → 3.3V

    GND / - → GND

    Signal / S → GPIO 6

    Buzzer Module:

    VCC / (+) → 5V

    GND / (-) → GND

    Signal (S) → GPIO 15

    Common Ground Connection:

    4xAA Battery Pack (-) → PICUNO Board GND

    CODE -- C:
